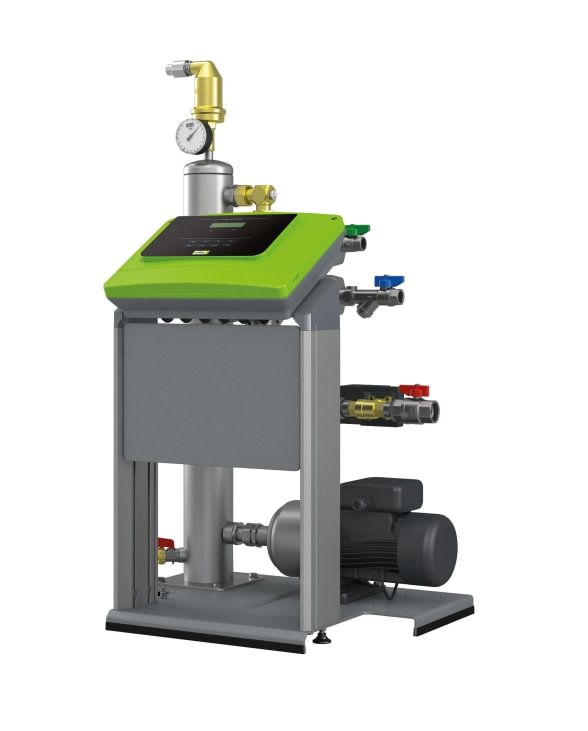

Reflex Servitec 60 degassing station (up to 220 m³ water or 50 m³ glycol, buildings up to 12 floors)

Reflex Servitec 60 is a high-capacity vacuum spray-tube degassing station for heating, ventilation and cooling systems. It automatically removes dissolved gases, prevents air pockets and corrosion, and keeps the system running stably. The Servitec 60 is designed for systems with up to 220 m³ of water or 50 m³ of glycol, which makes it a good fit for apartment blocks, office buildings and district heating networks up to 12 floors.

Key technical features

• For systems with up to 220 m³ of water or 50 m³ of glycol.

• Operating pressure up to 4.5 bar (buildings up to 12 floors).

• Simple one-button operation in "Auto" mode.

• Sensors adapt automatically to system parameters.

• Compatible with systems using diaphragm expansion vessels and pressure-maintaining stations.

• Make-up function from an unpressurised tank.

• Hydraulic section with actuator and ball valve – resistant to dirt and sludge.

• Compact and mobile – height 1.15 m, weight 39 kg.

Applications

• Closed heating, ventilation and cooling circuits.

• Apartment, public and office buildings, district heating systems.

• New and existing systems that need reliable air removal.

• Media: heating water, district heating water, water, glycol mixtures, emulsions and other water-based solutions.

How it works

Servitec 60 removes air in a vacuum vessel. Water is drawn into the vessel through a spray nozzle, where the vacuum separates the gases from it. The released air is discharged through a dedicated upper section of the vessel, and the degassed water is returned to the system. This provides continuous degassing and stable system operation.

Benefits

• Complete air removal from closed systems.

• Efficiency – optimal circulation and more stable heat transfer.

• Energy savings – lower costs thanks to better heat exchange.

• Longer service life – reduced risk of corrosion and pump failures.

• Easy operation – automatic mode and intuitive use.

• Compact and mobile – easy to transport and install.

Reflex Servitec 60 is a professional degassing station for large heating, ventilation and cooling systems. It reliably removes dissolved gases, protects against corrosion and air pockets, and ensures smooth, efficient operation – a modern solution for heating and cooling apartment, office and public buildings.
