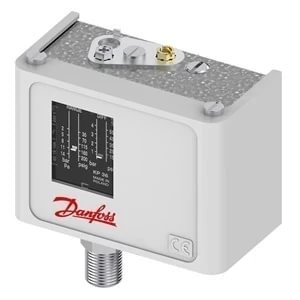

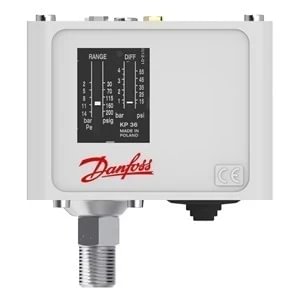

Danfoss KP35 slėgio relė
€ 89,50+ PVM
SKU
ERE000005
Model
KP35
Delivery
1 - 2 working days.Brand
Danfoss
Weight
0.41kg.
Have questions?
TL;DR: Danfoss KP35 — classic mechanical pressure switch with adjustable setpoint and differential. Used as protection or control switch in heating, cooling and water systems.
- Range: −0.2 … +7.5 bar (standard)
- Differential: 0.4-1.5 bar adjustable
- Contact: SPDT, up to 10 A
- Protection: IP 44
Applications
Heating systems — low-pressure pump protection (prevents dry running). Cooling systems — low-pressure protection for refrigerant/water. Water supply — hydrophore pump start/stop switch. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | ERE000005 |
| Type | Mechanical pressure switch |
| Pressure range | −0.2 … 7.5 bar |
| Differential | 0.4-1.5 bar |
| Max working pressure | 17 bar |
| Contact type | SPDT (single-pole double-throw) |
| Electrical rating | 10 A / 400 V AC (resistive) |
| Pressure connection | G 1/4" or 7/16" UNF |
| Protection class | IP 44 |
| Ambient T | −40 → +65 °C |
Notes for the designer
KP35 is available with manual-reset and auto-reset options. For safety-critical duties choose manual reset — the operator must acknowledge the trip before restarting.
When to choose KP35
- Low-pressure pump protection — dry-run prevention
- Refrigerant low-pressure control
- Hydrophore automatic start/stop
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free consultation on switch selection
Official Danfoss catalog: store.danfoss.com/KP35
FAQ
Suitable for high-pressure (HP) protection?
No — KP35 is a low-pressure (LP) switch. HP protection uses other KP models (KP1, KP2) or the MBC/CAS series.
Manual vs auto reset?
Manual reset — operator must reset the switch after a trip (safety duty). Auto reset — resets itself when pressure returns to normal (control duty).
