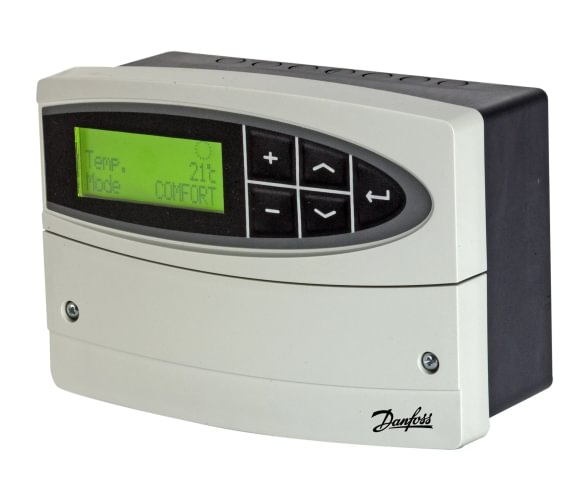

Danfoss ECL Comfort 110 controller kit (heating + DHW, 230V, with weekly timer)
- Number of circuits: 1 (heating or DHW)
- Display: custom graphic with backlight, integrated weekly timer
- Power supply + IP: 230 V AC, 50 Hz, 3 VA / IP 41
- Communication: DLG interface (Danfoss Link integration); no Modbus/M-bus
Where ECL Comfort 110 is used
This single-circuit controller is typically chosen for small substations and boiler rooms — a single apartment, house, small building or basic DHW system. The integrated weekly timer allows comfort and setback temperature setpoints per day of week. The kit gets a system running immediately, without buying sensors and actuators separately.
The controller supports weather-compensated flow temperature control (heating), constant temperature control (DHW) and return temperature limitation — the functions required for properly tuned Danfoss AMB 162 valve operation.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 087B1721 |
| Series | Danfoss ECL Comfort 110 |
| Number of circuits | 1 (heating or DHW) |
| Display | Graphic with backlight |
| Timer | Integrated weekly schedule, 30 min steps |
| Power supply | 230 V AC (207–244 V), 50 Hz |
| Power consumption | 3 VA |
| Sensor inputs | Up to 4 PT1000 (1000 Ω @ 0 °C) + 1 digital input |
| Triac outputs | 15 VA @ 230 V AC (for motorised valve) |
| Relay outputs | 4 (2) A @ 230 V AC (for pump) |
| Communication | DLG interface (Danfoss Link) |
| IP class | IP 41 (DIN 40050) |
| Ambient temp. (operating) | 0–55 °C |
| Storage temp. | −40 to +70 °C |
| Clock backup | 36 h |
| Mounting | DIN rail, wall or panel |
Kit contents
- ECL Comfort 110 controller (230 V AC, with weekly timer) and mounting base
- AMB 162 valve actuator, 230 V (Danfoss code 082H0015)
- ESMT outdoor air PT1000 sensor (−50…+50 °C)
- ESM-11 surface PT1000 sensor, pipe-mounted (0…+100 °C)
When to choose ECL Comfort 110
- Maintenance and one-to-one replacement of existing ECL 110 substations (matching form factor)
- Simple 1-circuit substation without protocol communication requirement
- Boiler rooms with a single valve and single pump
- Small DHW node without remote monitoring need
- Compatibility: sensors — Danfoss ESMT / ESM-10 / ESM-11 / ESMU (all PT1000); valve actuators — Danfoss AMB 100 / AMV 10 / 20 / 30 / 100 series (3-point control)
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation on controller configuration and application scheme
Official Danfoss catalogue: store.danfoss.com/ECL Comfort 110
Frequently asked questions
Can ECL 110 control heating and DHW simultaneously?
No. ECL 110 has one circuit — it runs one application at a time (heating OR DHW). If both are required, ECL 210 (2 circuits) or ECL 310 (3 circuits) is the correct choice.
Does this kit have Modbus or M-bus communication?
No. ECL 110 only has the DLG interface for integration with Danfoss Link™ home automation. If Modbus RTU or M-bus is needed, choose the ECL 210 or ECL 310 series.
What does "EE with timer" mean in the name?
"EE" marks a specific configuration for the Baltic market, and "with timer" means the controller has an integrated weekly schedule (30 min steps) — no need for a separate ECA 110 timer chip card.
Can ECL 110 be replaced with ECL 210?
Yes, this is a logical upgrade path — ECL 210 has a larger LCD display, more sensor inputs (8 instead of 4), supports A-key programmable applications and Modbus. The physical mounting dimensions differ, so cabinet layout needs to be adapted.
Where can I get application scheme descriptions?
On the Danfoss website: application 130 — weather-compensated heating; 116 — constant DHW temperature; 131 — combined variant. Each scheme has its own installation and operating guide.
