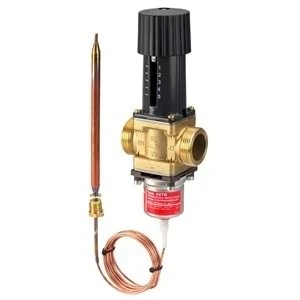

Danfoss AVTB 15 termostatinis vožtuvas
- DN: 15 (G 3/4" male thread)
- Setting range: 20-60 °C (standard head)
- Operation: hydraulic, no power supply
- PN: 16 bar
Applications
DHW temperature control in small substations and single-family houses. The thermostat sensor is threaded into the DHW outlet of the plate heat exchanger — it senses hot-water temperature and modulates the primary flow. A power-free solution suitable for retrofit and small substation projects. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 003N5111 |
| Type | Self-acting thermostatic valve |
| DN | 15 |
| Kvs | 1.9 m³/h |
| Connection | G 3/4" male thread |
| Setting range | 20-60 °C (standard head) |
| PN | 16 bar |
| Max media temperature | 130 °C |
| Capillary tube | 2 m (integrated) |
| Body material | Bronze |
Notes for the designer
AVTB has no electronic feedback — under sudden DHW demand (shower) response may lag 30-60 s due to sensor thermal inertia. A modern alternative is electronic PID control via ECL Comfort + AMV + VS2/VF valve.
When to choose AVTB 15
- Single-family houses, small substations without electronic control
- Retrofit projects without an ECL Comfort controller
- Simple power-free solution required
- Backup safety on an electronic control system
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free consultation on DHW solutions
Official Danfoss catalog: store.danfoss.com/003N5111
FAQ
Does it need power?
No. AVTB is hydraulically driven — the sensor expands/contracts with temperature, mechanically opening/closing the valve.
How to set the temperature?
Local rules typically require ≥ 55 °C DHW for Legionella prevention. Set via the dial on the head.
Where to mount the sensor?
Into the DHW outlet pipe of the plate heat exchanger (towards the consumer). The capillary tube allows placing the sensor up to 2 m from the valve.
