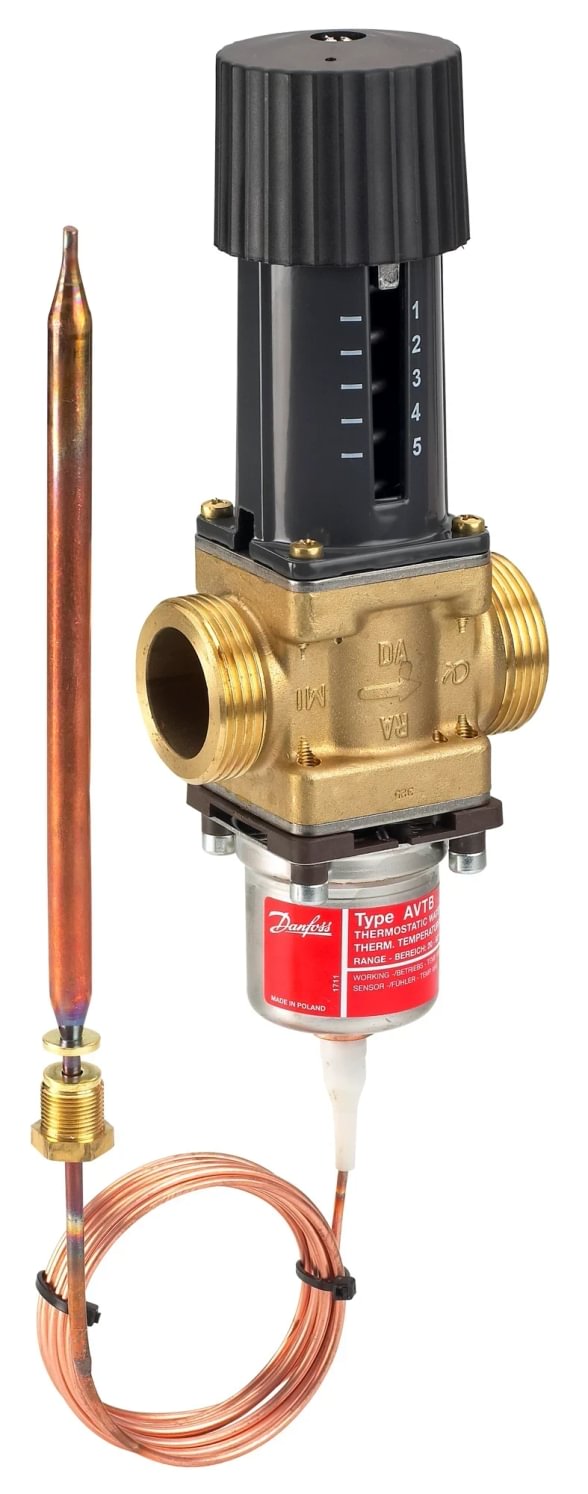

Danfoss AVTB 25 termostatinis vožtuvas
€ 593,68€ 828,00+ PVM
SKU
003N5113
Model
AVTB25
Delivery
1 - 2 working days.Brand
Danfoss
Weight
1.701kg.
Have questions?
TL;DR: Danfoss AVTB 25 — largest standard AVTB thermostatic valve for high-flow DHW substations.
- DN: 25 (G 1 1/4" male thread)
- Kvs: 5.5 m³/h
- Setting range: 20-60 °C
- PN: 16 bar
Applications
High-flow DHW substations: multi-unit buildings, hotels, residential complexes, sports centres. Supports larger flows without excessive Δp across the valve. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 003N5113 |
| Type | Self-acting thermostatic valve |
| DN | 25 |
| Kvs | 5.5 m³/h |
| Connection | G 1 1/4" male thread |
| Setting range | 20-60 °C |
| PN | 16 bar |
| Max media temperature | 130 °C |
| Capillary tube | 2 m |
| Body material | Bronze |
Notes for the designer
When choosing AVTB 25 over smaller sizes, verify DHW peak flow will not exceed ~2.5 m³/h — only then valve authority remains adequate. For very high flows consider electronic PID control (ECL + AMV).
When to choose AVTB 25
- High-flow DHW substations — multi-unit buildings
- Sports centres, spa hotels, sanatoriums
- Power-free solution required for larger flows
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free consultation on DHW solutions
Official Danfoss catalog: store.danfoss.com/003N5113
FAQ
Suitable for industrial DHW?
Not for very large industrial DHW (>10 m³/h). Use electronic control with larger actuators.
Can the sensor be removed for service without shutdown?
The sensor is threaded into a dedicated pocket — it can be removed without depressurising the system.
