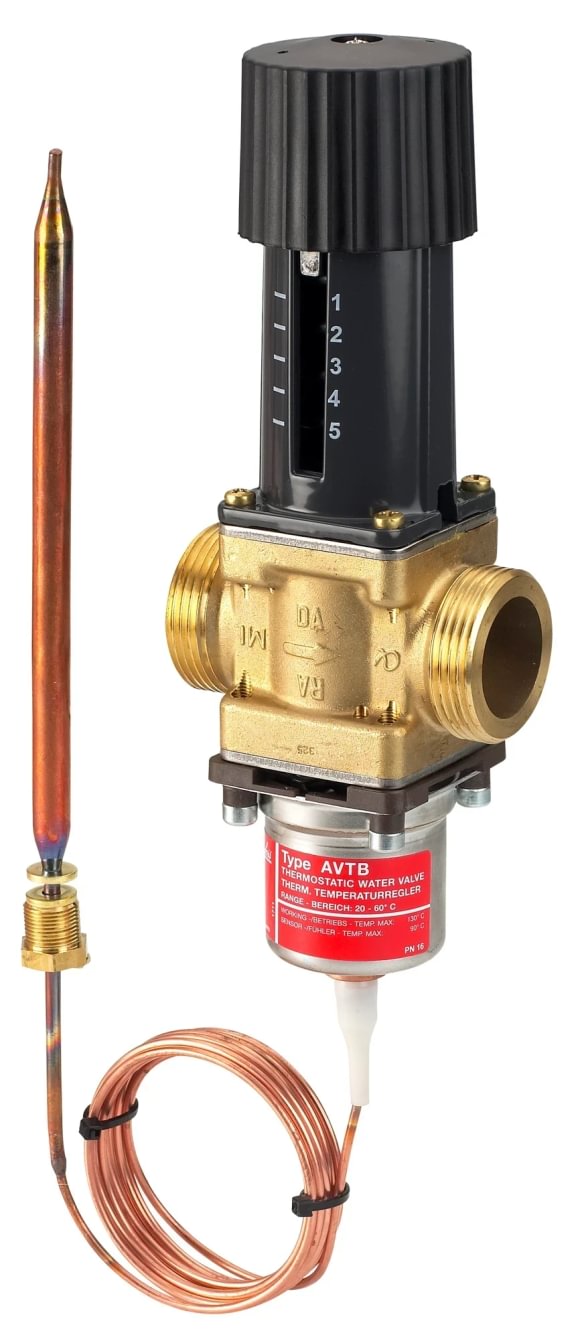

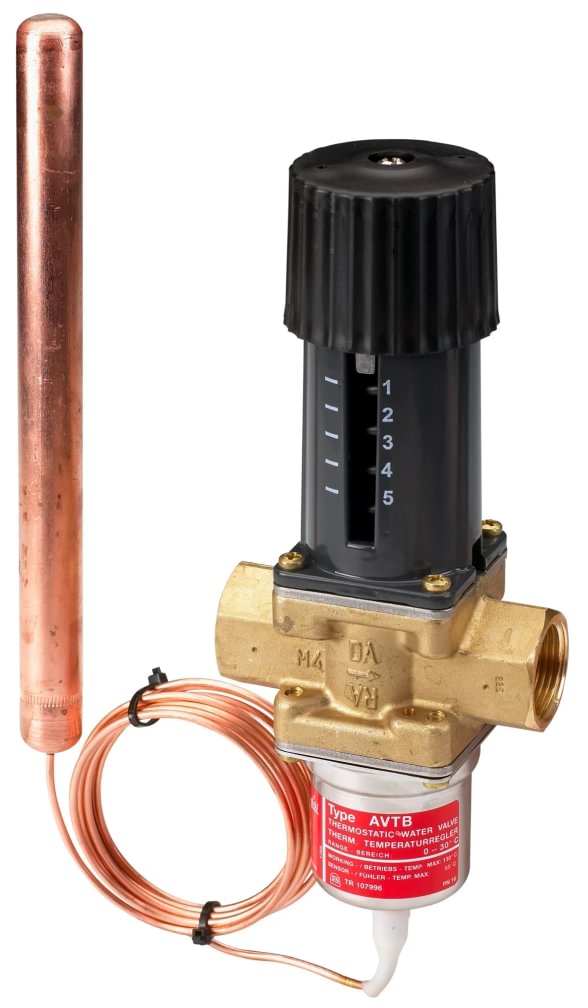

Danfoss AVTB 20 termostatinis vožtuvas
€ 524,84€ 732,00+ PVM
SKU
003N5112
Model
AVTB20
Delivery
1 - 2 working days.Brand
Danfoss
Weight
1.701kg.
Have questions?
TL;DR: Danfoss AVTB 20 — self-acting thermostatic valve for DHW temperature control, DN20 version with higher Kvs. For medium substations.
- DN: 20 (G 1" male thread)
- Kvs: 3.4 m³/h
- Setting range: 20-60 °C
- PN: 16 bar
Applications
DHW temperature control in medium substations (small multi-unit buildings, small hotels, school shower sections). Higher Kvs than AVTB 15 — suitable for larger DHW flows without high Δp across the valve. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 003N5112 |
| Type | Self-acting thermostatic valve |
| DN | 20 |
| Kvs | 3.4 m³/h |
| Connection | G 1" male thread |
| Setting range | 20-60 °C (standard head) |
| PN | 16 bar |
| Max media temperature | 130 °C |
| Capillary tube | 2 m |
| Body material | Bronze |
Notes for the designer
DN20 is chosen when peak DHW flow exceeds ~0.3 l/s (>1.1 m³/h) — AVTB 15 (Kvs 1.9) would give excessive Δp. The sensor is threaded into the DHW outlet branch.
When to choose AVTB 20 over AVTB 15
- Medium substations with higher DHW flow
- Schools, sports halls, hotels with shower sections
- Larger pipe DN required
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free consultation on DHW solutions
Official Danfoss catalog: store.danfoss.com/003N5112
FAQ
Can I use it in a heating loop?
Technically yes, but AVTB targets DHW. Heating loops use electronic control (ECL Comfort + AMV actuator).
Does it work without network pressure?
No. AVTB opens/closes by sensor expansion; the system needs flow and pressure differential.
