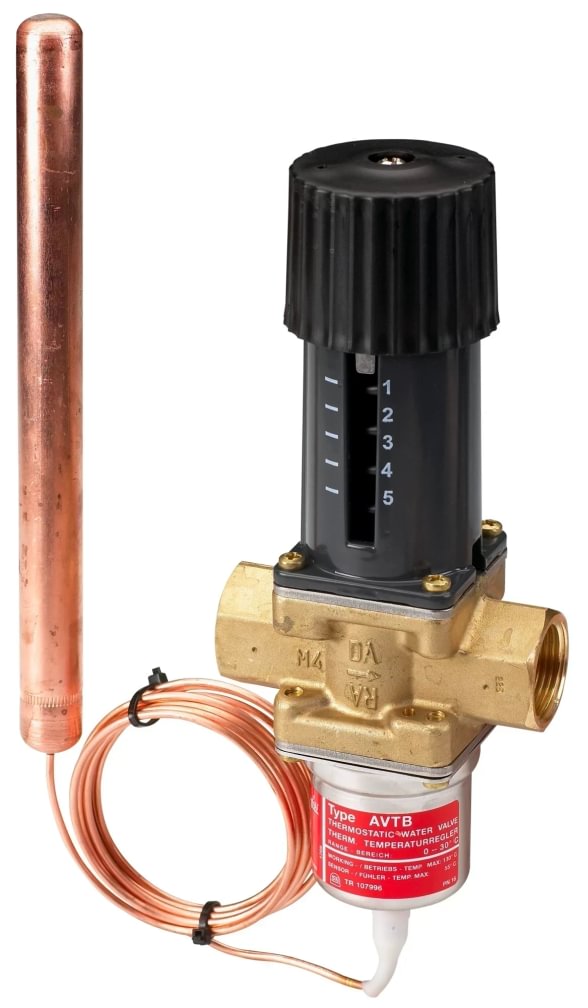

DHW temperature control in medium substations (small multi-unit buildings, small hotels, school shower sections). Higher Kvs than AVTB 15 — suitable for larger DHW flows without high Δp across the valve. Delivery across the EU.
| Parameter | Value |
|---|---|
| Code | 003N5112 |
| Type | Self-acting thermostatic valve |
| DN | 20 |
| Kvs | 3.4 m³/h |
| Connection | G 1" male thread |
| Setting range | 20-60 °C (standard head) |
| PN | 16 bar |
| Max media temperature | 130 °C |
| Capillary tube | 2 m |
| Body material | Dezincification-resistant (DZR) brass (BS 2872 / CZ132) |
Size is selected from kv = Q / √Δp (Δp across the valve): choose the smallest valve whose Kvs is not lower than the calculated kv; DN20 has Kvs 3.4 m³/h (AVTB 15 – 1.9). The sensor is threaded into the DHW outlet branch.
Danfoss manufacturer catalog: store.danfoss.com/003N5112
Technically yes, but AVTB targets DHW. Heating loops use electronic control (ECL Comfort + AMV actuator).
No. AVTB works without auxiliary energy, but the system needs flow and a pressure differential (max. Δp across the valve is 10 bar).
