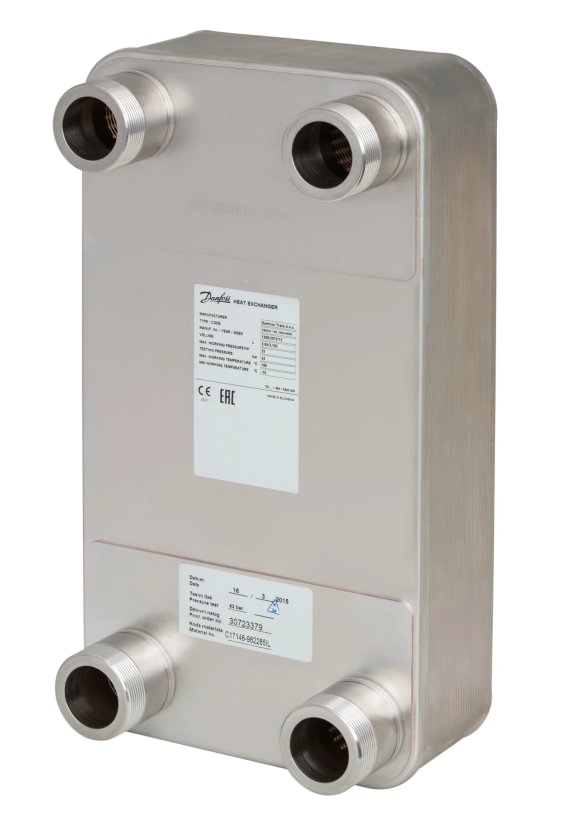

This 72-plate (36 + 36) brazed heat exchanger is designed for user branches in substations of multi-family and commercial buildings. Primary side from district heating network, secondary side for space heating or DHW production. The CoResist variant enables use in systems with aggressive (chlorides, ammonia) water, where standard copper brazing would be unsuitable. For hard water with elevated Ca/Mg carbonate content, limescale gradually builds up on the plates and reduces heat-transfer efficiency; for such systems gasketed (plate-and-frame) exchangers are preferable, as they can be periodically opened for mechanical or CIP cleaning.
| Parameter | Value |
|---|---|
| Code | 079G1794 |
| Series | Danfoss XB52 Micro Plate |
| Model | XB52M-2 36/36 CoResist |
| Number of plates | 72 (36 + 36) |
| Nominal pressure (PN) | 25 bar |
| Connection (ISO 228/1) | G 2" external thread |
| Plate material | Stainless steel AISI 316L (1.4404) |
| Brazing filler | CoResist (Cu+) |
| Temperature range | −196 °C … +180 °C |
| Media | District heating water; glycol up to 50%; aggressive water (CoResist) |
| Weight | 27.14 kg |
| Height (without supports) | 467 mm |
| PED category | PED 2014/68/EU, category I |
| Configuration | 2-pass |
Formula: P = Q × ΔT × 1.163 (kW, Q m³/h, ΔT °C).
Illustrative calculation, not this model's capacity. Example: heating mode (90/70 °C → 65/40 °C) at Q = 2.2 m³/h and ΔT ≈ 20 °C → P ≈ 50 kW.
CoResist (Cu+) brazing is, per Danfoss, a medium corrosion resistance brazing type (standard Cu - standard resistance, full stainless steel StS - highest). Standard with Cu — cheaper, suitable for standard district heating water. For hard water with elevated Ca/Mg carbonate content, limescale gradually builds up on the plates and reduces heat-transfer efficiency; for such systems gasketed (plate-and-frame) exchangers are preferable, as they can be periodically opened for mechanical or CIP cleaning.
The Danfoss XB certificate list includes SVGW, Kiwa and PZH drinking-water hygiene certificates (not valid for every code); verify the specific code against the Danfoss certificate list.
Brazed gasket-free construction requires no periodic disassembly. Only CIP (Clean-in-Place) flushing every 3-5 years is recommended, if fouling signs appear.
Yes, ethylene glycol or propylene glycol solutions up to 50%, with appropriate inhibitors. For DHW — only potable-grade fluids.
This code complies with PED 2014/68/EU (Danfoss category: I).
