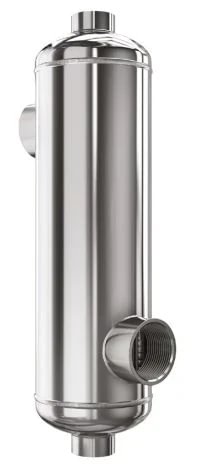

Hexonic B130 pool tubular heat exchanger, up to 40 m³, PN 16
- Application: pool water heating (chlorinated water)
- Heat capacity: 10–50 kW (heat source T 40–90 °C, pool T 20 °C)
- Recommended pool volume: up to 40 m³
- Material: stainless steel (shell and tubes)
Where B130 is used
B130 is the mid-power model for private pools 25–40 m³ (typical 4 × 8 m surface, 1.2–1.5 m depth). Suitable for seasonal outdoor pools with covers, indoor SPA / villa complex pools, and small commercial systems (hotel SPA zones, sports clubs). The stainless steel shell-and-tube construction operates in high-flow regime with low pressure loss — well matched to heat pump + pool loops sharing a single pump.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 0170-0003 |
| Series / Model | Hexonic B / B130 |
| Construction | Shell-and-tube, single pass, corrugated tubes |
| Heat capacity | 10–50 kW (per heat source T) |
| Recommended pool volume | up to 40 m³ (25–40 m³ range) |
| Connection — heat source (K1, K4) | G¾" internal thread |
| Connection — pool water (K2, K3) | G1½" internal thread |
| Max. pressure (PN) | 16 bar |
| Max. working temperature | 165 °C |
| Heat exchange area | 0.2 m² |
| Tube diameter | 8 mm |
| Dimensions (A × B × C, ØDz) | 122 × 225 × 439.5 mm; Ø80 mm |
| Weight | ~3.3 kg |
| Material | Stainless steel |
| Media | Chlorinated pool water, potable water, glycol on heat source side |
Pool heat-up time — quick calculation
Exchanger capacity: P = Q × ΔT × 1.163 (kW). Pool heat-up time: τ = V × ρ × Cp × ΔT / P.
Example: 40 m³ pool, +5 °C rise, with B130 at ~38 kW (source 70–80 °C) → E = 40,000 × 4.186 × 5 = 837 MJ ≈ 232 kWh; τ ≈ 232 / 38 ≈ 6.1 h. In practice, plan for surface losses (~150–300 W/m² without cover).
When to choose B130
- Medium private pools 25–40 m³
- Indoor SPA / villa complex pools
- Small hotel / sports club SPA zones with continuous heating demand
- Heat source: gas / solid-fuel boiler (30–50 kW), air-water or ground-water heat pump, solar collectors, district heating substation
- Chlorinated water (not salt electrolysis)
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation for pool heat exchanger sizing
Official Hexonic catalogue: hexonic.com/Pool catalog (PDF)
Frequently asked questions
B45 or B130 — how to choose?
B45 — up to 15 m³ pools, B130 — 25–40 m³. For 15–25 m³ pools, B70 fits in between (10–40 kW). B130 advantage: larger heat exchange area (0.2 vs 0.1 m²), larger pool-water connection (G1½" vs G1"), so lower pressure loss at high flow.
Suitable for salt-electrolysis pools?
No. B130 shell and tubes are stainless steel — salt electrolysis (~5 g/l NaCl) causes stress corrosion cracking. For salt pools, choose the Hexonic TI series (titanium equivalent TI350) or REV series in titanium version.
What flow rates are required?
Per catalog — pool water 12 m³/h (Δp ~15 kPa), heat source 3 m³/h (Δp ~4 kPa). In practice, harmonized with existing pump and filter capacity.
Compatible with a geothermal heat pump loop?
Yes. At 50 °C ground-water output, B130 delivers ~18 kW — suited to maintenance mode. For fast heat-up either raise source T or step up to B180 (larger heat exchange area).
What maintenance is required?
Welded construction without gaskets — no sealing maintenance. Once per season — CIP flushing if Δp increases. For winter — drain the pool side (freezing bursts corrugated tubes).
