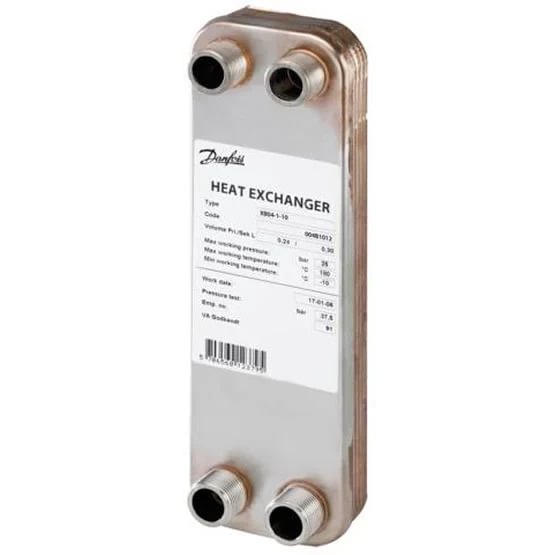

Danfoss XB 12M-1 40 CoResist brazed plate heat exchanger, PN 25
- Code: 079G1353
- Series: Danfoss XBM-1
- Model: XB 12M-1 40 CoResist
- Number of plates: 40
Where XB 12M-1 40 CoResist is used
This 40-plate brazed heat exchanger is designed for user branches in substations of multi-family and commercial buildings. Primary side from district heating network, secondary side for space heating or DHW production. The CoResist variant enables use in systems with aggressive (chlorides, ammonia) water, where standard copper brazing would be unsuitable.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 079G1353 |
| Series | Danfoss XBM-1 |
| Model | XB 12M-1 40 CoResist |
| Number of plates | 40 |
| Nominal pressure (PN) | 25 bar |
| Connection (ISO 228/1) | G 1 1/4" external thread, DN 32 |
| Plate material | Stainless steel AISI 316L (1.4404) |
| Brazing filler | Stainless steel (CoResist) |
| Heat capacity | ~28-80 kW (depends on flow and ΔT) |
| Temperature range | −196 °C … +180 °C |
| Media | District heating water; glycol up to 50%; aggressive water (CoResist) |
| Weight | ~12.5 kg |
| Height (without supports) | ~460 mm |
| PED category | PED 2014/68/EU, category II |
| Configuration | 1-pass |
Heat capacity — quick calculation
Formula: P = Q × ΔT × 1.163 (kW, Q m³/h, ΔT °C).
Example: heating mode (90/70 °C → 65/40 °C) at Q = 2.4 m³/h and ΔT ≈ 20 °C → P ≈ 55 kW.
When to choose XB 12M-1 40 CoResist
- Substation user branches with capacity demand 28-80 kW
- DHW primary heat exchanger for multi-family systems (aggressive water)
- When PED cat II certification is required for commercial buildings
- CoResist variant — for regions with elevated chloride content in water
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation for XB 12M-1 40 CoResist selection
Official Danfoss catalogue: store.danfoss.com/079G1353
Frequently asked questions
How does XB 12L-2 CoResist differ from standard XB 12L-2 (with Cu brazing)?
CoResist uses stainless steel brazing filler (not copper) — more resistant to chlorides, ammonia and other aggressive compounds. Standard with Cu — cheaper, suitable for standard district heating water.
Is it suitable for potable water (DHW)?
Yes. Stainless steel plates and stainless steel brazing meet potable water system requirements (WRAS, DVGW, depending on country).
What maintenance is required?
Brazed gasket-free construction requires no periodic disassembly. Only CIP (Clean-in-Place) flushing every 3-5 years is recommended, if fouling signs appear.
Can glycol mixtures be used?
Yes, ethylene glycol or propylene glycol solutions up to 50%, with appropriate inhibitors. For DHW — only potable-grade fluids.
What are the PED requirements?
XB series complies with PED 2014/68/EU, category II (medium risk level) — allowing commercial use in Europe.
