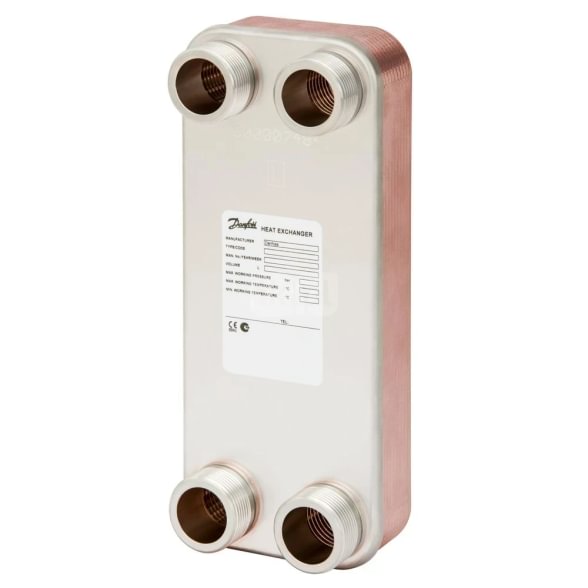

Danfoss XB12L-1 60 lituotas plokštelinis šilumokaitis
€ 444,24€ 720,00+ PVM
SKU
004H7668
Model
XB12L-1 60
Delivery
Contact for delivery termBrand
Danfoss
used_for
sildymui-karstam-vandeniui Connection Type
iorsriegis_dn25
Number Of Plates
60
Old Type
xb_101
min_temp
10
max_temp
180
Connection nozzles
4
degrees
1
product_analogue
lb3160h_s ,lb3140h_kv Weight
5.99kg.
TL;DR: Danfoss XB12L-1 with 60 plates — the largest XB12L-1 series exchanger with G 1" connections, for higher DHW/heating demand loops.
- Plates: 60
- Power (DHW): ~80-120 kW
- Connections: G 1" male thread
- Material: AISI 316, copper brazing
Applications
Larger multi-unit buildings (16-24 apartments), commercial premises with medium-to-large DHW peak demand. Larger boiler-room loops with hydraulic separation. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 004H7668 |
| Plate count | 60 |
| Hydraulic layout | 1-pass |
| Connections | G 1" male thread |
| Max pressure | 30 bar |
| Temperature range | −10 → 195 °C |
| Plates | AISI 316 |
| Braze | Copper |
Notes for the designer
XB12L-1 60 is the top of the XB12L-1 series. Above 120 kW or DHW peak > 2.0 l/s move to the XB37H series with DN 25 connections.
When to choose XB12L-1 60
- Medium multi-unit buildings (16-24 apartments)
- Reserve capacity for DHW cycles required
- Pipework allows G 1" connections
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free sizing consultation
Official Danfoss catalog: store.danfoss.com/004H7668
FAQ
Why 60 plates, not 80?
XB12L-1 uses G 1" connections — 60 plates is the hydraulic maximum for the series. Larger loads use XB37H or XB52M with larger connections.
Do I need an expansion vessel on the secondary side?
Yes. A small expansion vessel is needed on the DHW side to accommodate water expansion during heating.
