-38%

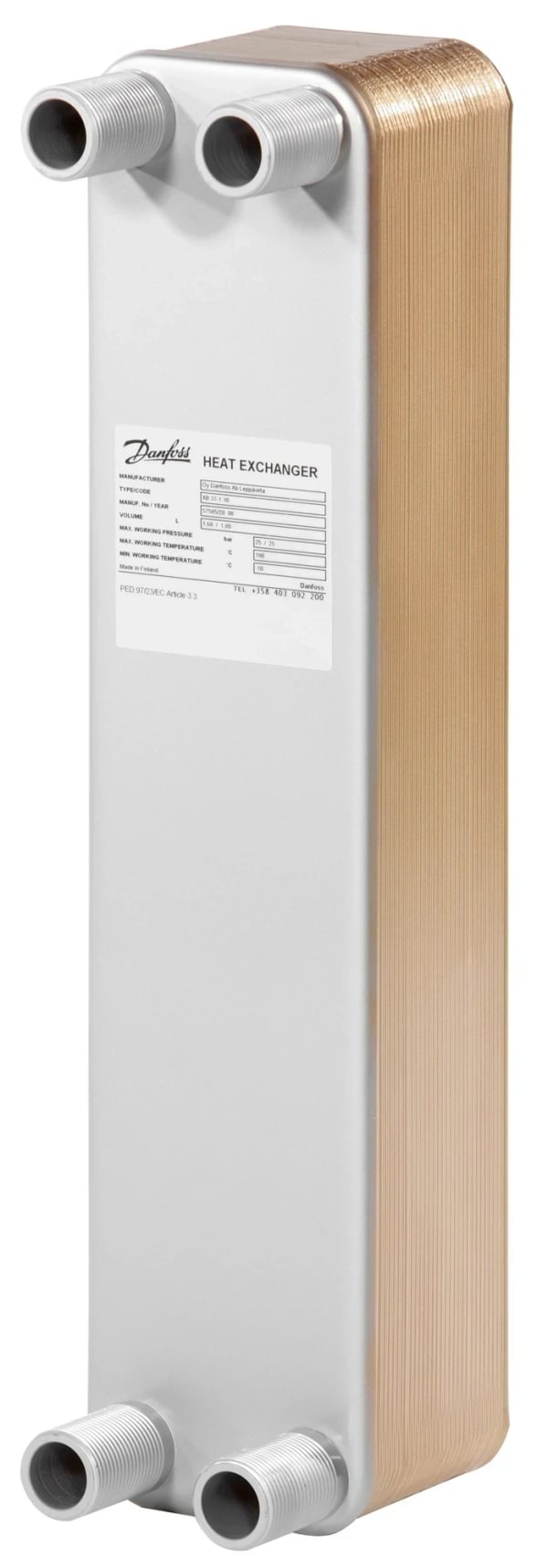

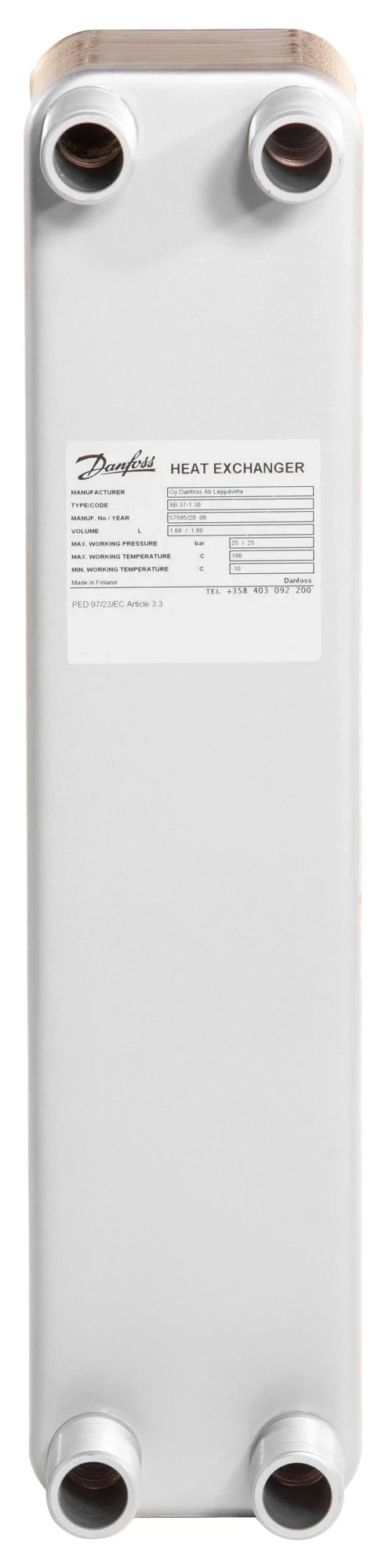

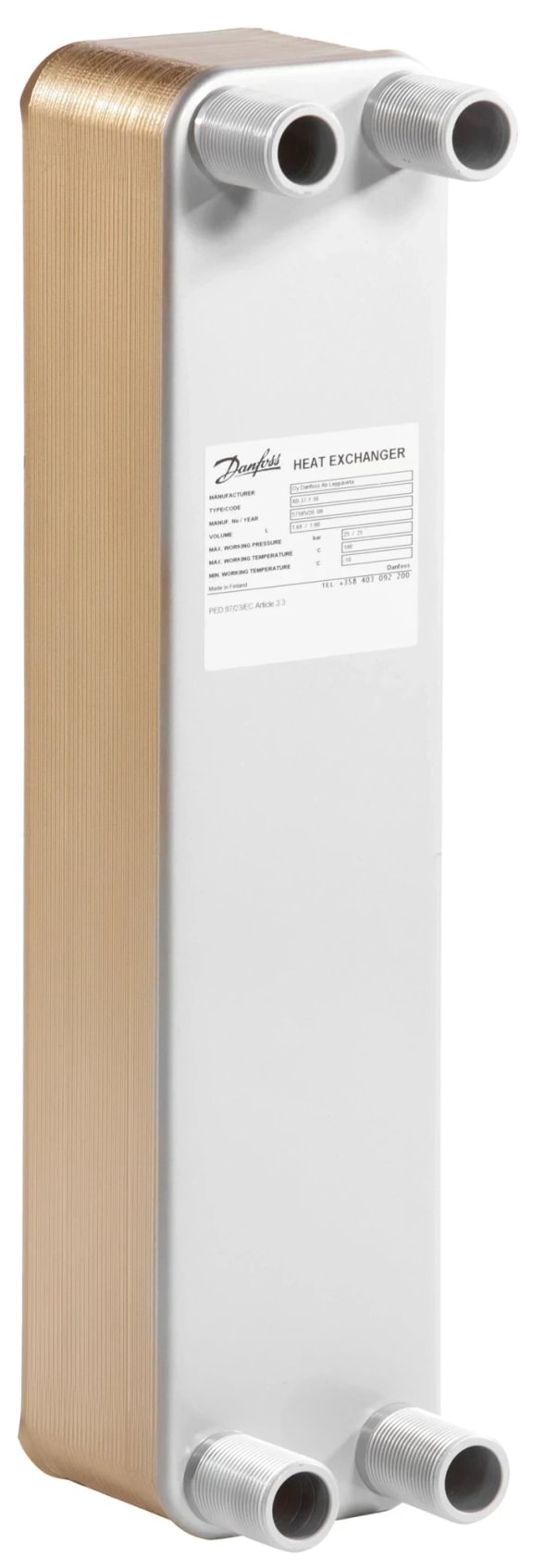

Danfoss XB 37H-1 60 lituotas plokštelinis šilumokaitis
€ 544,81€ 883,00+ PVM
SKU
004H7308
Model
XB 37H-1 60
Delivery
Contact for delivery termBrand
Danfoss
used_for
sildymui-karstam-vandeniui Connection Type
iorsriegis_dn25
Number Of Plates
60
Old Type
xb36
min_temp
10
max_temp
180
Connection nozzles
4
degrees
1
product_analogue
lb6040 ,lb6050 Weight
11.3kg.
TL;DR: Danfoss XB 37H-1 with 60 plates — higher-capacity copper-brazed plate exchanger for commercial building substations.
- Plates: 60
- Power (DHW): ~150-220 kW
- Connections: G 1 1/4" male thread
- Material: AISI 316, copper brazing
Applications
Higher-peak DHW demand — hotels with bath/shower sections, schools with sports halls, office complexes, industrial buildings. On the heating side — hydraulic separation for higher-power loops. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 004H7308 |
| Plate count | 60 |
| Hydraulic layout | 1-pass |
| Connections | G 1 1/4" male thread |
| Max pressure | 25 bar |
| Temperature range | −10 → 195 °C |
| Plates | AISI 316 |
| Braze | Copper |
Notes for the designer
A higher plate count transfers larger flows with lower Δp. Suits projects where the heating side has limited working pressure (PN 16 network) and low hydraulic loading is important.
When to choose XB 37H-1 60 over 50
- Larger DHW peak flow (>2.5 l/s)
- Higher peak heating demand (150-220 kW)
- Lower Δp across the exchanger desired
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free sizing consultation
Official Danfoss catalog: store.danfoss.com/004H7308
FAQ
Suitable for industrial use?
Yes, within the stated PN 25 and temperature limits. For higher duties consider dismountable exchangers with suitable gaskets.
How to maximise service life?
Strainer upstream (min. 500 μm), regular DHW-side descaling, steady water flow without frequent start/stop cycles.
