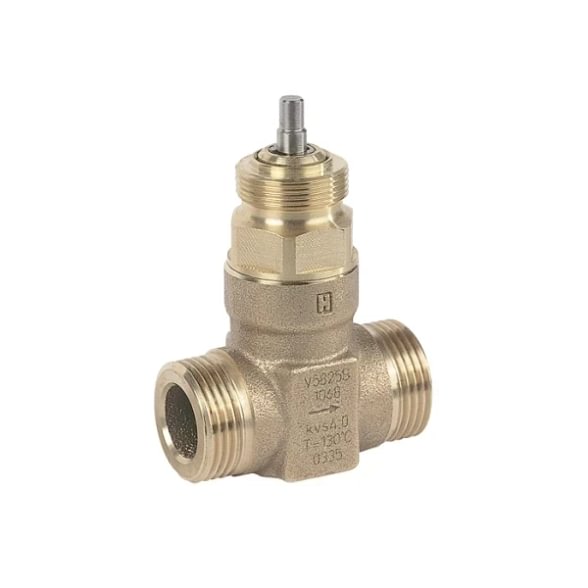

Honeywell V5825B1076
- Type: 2-way seat valve, linear characteristic
- DN + Kvs: DN 25, Kvs = 6.3 m³/h
- PN: 16 bar
- Δp range: up to 400 kPa max. close-off
Applications
Honeywell V5825B1076 fits 60–150 kW heating points: multi-family substation primaries, commercial-building section heating groups, DHW primaries for 50–80-apartment buildings. Paired with Honeywell Excel / Centraline via ML7420 (0–10 V) or M6410 (3-point) actuator. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | V5825B1076 |
| Series | Honeywell V5825B |
| Type | 2-way seat control valve |
| Nominal diameter (DN) | DN 25 |
| Kvs | 6.3 m³/h |
| Nominal pressure (PN) | 16 bar |
| Connection | External thread Rp 1" |
| Valve stroke | 5.7 mm |
| Valve characteristic | Linear |
| Media | Heating water, glycol solutions up to 50 % |
| Media temperature | +2 → +140 °C |
| Body material | Brass (DZR) |
| Leakage class | III per EN 60534-4 |
| Compatible actuators | Honeywell ML7420, ML7421, M6410, M6410C/L |
Flow and capacity — quick calculation
Formula: Q = Kvs × √Δp.
Example: at Δp = 0.25 bar — Q ≈ 3.15 m³/h → P ≈ 73 kW. At Δp = 0.5 bar — Q ≈ 4.45 m³/h → P ≈ 104 kW. At Δp = 1.0 bar — Q = 6.3 m³/h → P ≈ 146 kW (ΔT = 20 °C).
Designer note
V5825B1076 is a common pick for 60–150 kW substation primaries. When Q > 5 m³/h with a limited Δp — step up to V5825B1084 (DN 32 Kvs 10). To keep valve authority a ≥ 0.25, Δpvalve ≥ 25 % of Δpsystem.
When to choose V5825B1076
- Medium-to-larger (60–150 kW) multi-family substation primary valve
- Commercial-building section heating group
- DHW primary for larger multi-family building (50–80 apartments)
- Retrofit projects with Honeywell Excel / Centraline
- Compatibility: Honeywell ML7420, ML7421, M6410 range.
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing for projects and bulk orders
- 30-day payment terms for companies (per contract)
- Free technical consultation on valve and actuator selection
Official Honeywell catalog: buildings.honeywell.com
FAQ
Which actuator fits V5825B1076?
Honeywell ML7420 (0–10 V), ML7421 (3-point), M6410 range. The 5.7 mm stroke ties the valve to Honeywell actuators without an adapter yoke.
Suitable as a DH primary valve?
Yes. PN 16 covers standard DH pressure. Higher-pressure points need flanged PN 25 alternatives.
Leakage class?
Class III per EN 60534-4 — leakage ≤ 0.1 % Kvs.
Can glycol mixtures be used?
Yes, up to 50 %. Higher concentrations increase viscosity — apply the glycol correction factor.
