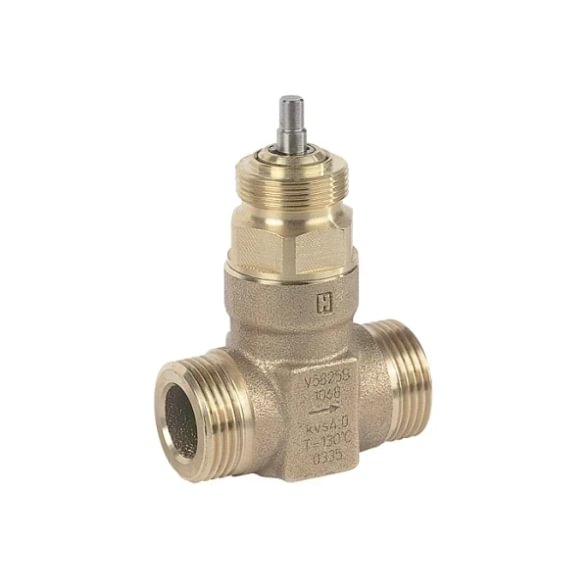

Honeywell V5825B1084
- Type: 2-way seat valve, linear characteristic
- DN + Kvs: DN 32, Kvs = 10 m³/h
- PN: 16 bar
- Δp range: up to 400 kPa max. close-off
Applications
Honeywell V5825B1084 is the highest-throughput threaded V5825B. Fits 150–230 kW multi-family substation primary valves, commercial-building main heating-group valves, hotel/school DHW primaries at higher load. Paired with Honeywell Excel / Centraline via ML7420 (0–10 V) or M6410 (3-point) actuator. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | V5825B1084 |
| Series | Honeywell V5825B |
| Type | 2-way seat control valve |
| Nominal diameter (DN) | DN 32 |
| Kvs | 10 m³/h |
| Nominal pressure (PN) | 16 bar |
| Connection | External thread Rp 1¼" |
| Valve stroke | 5.7 mm |
| Valve characteristic | Linear |
| Media | Heating water, glycol solutions up to 50 % |
| Media temperature | +2 → +140 °C |
| Body material | Brass (DZR) |
| Leakage class | III per EN 60534-4 |
| Compatible actuators | Honeywell ML7420, ML7421, M6410, M6410C/L |
Flow and capacity — quick calculation
Formula: Q = Kvs × √Δp.
Example: at Δp = 0.25 bar — Q = 5.0 m³/h → P ≈ 116 kW. At Δp = 0.5 bar — Q ≈ 7.07 m³/h → P ≈ 164 kW. At Δp = 1.0 bar — Q = 10 m³/h → P ≈ 232 kW (ΔT = 20 °C).
Designer note
V5825B1084 is the largest threaded V5825B variant. Above ~230 kW step up to a flanged DN 40+ valve (Honeywell V5011R, Siemens VVF, Belimo H6/H7). The 5.7 mm stroke ties the valve to Honeywell ML7420/ML7421/M6410 actuator series.
When to choose V5825B1084
- Higher-load (150–230 kW) multi-family substation primary valve
- Main heating-group valve in commercial buildings
- Hotel/school DHW primary valve at higher load
- Retrofit projects with Honeywell Excel / Centraline
- Compatibility: Honeywell ML7420 (0–10 V), ML7421 (3-point), M6410 range.
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing for projects and bulk orders
- 30-day payment terms for companies (per contract)
- Free technical consultation on valve and actuator selection
Official Honeywell catalog: buildings.honeywell.com
FAQ
When does DN 32 Kvs 10 suffice, and when do I need DN 40+?
V5825B1084 handles up to ~230 kW (Δp = 1 bar, ΔT = 20 °C). Above 230 kW — or pipe velocity above 2 m/s — step up to flanged valves.
Which actuator?
Honeywell ML7420 (0–10 V), ML7421 (3-point), M6410 (3-point). Adapter-based alternatives are not recommended — the 5.7 mm stroke is atypical for other brands.
Suitable for PN 25 systems?
No. V5825B1084 is PN 16. For > 16 bar systems use flanged PN 25 alternatives.
Leakage class?
Class III per EN 60534-4 — leakage ≤ 0.1 % Kvs.
