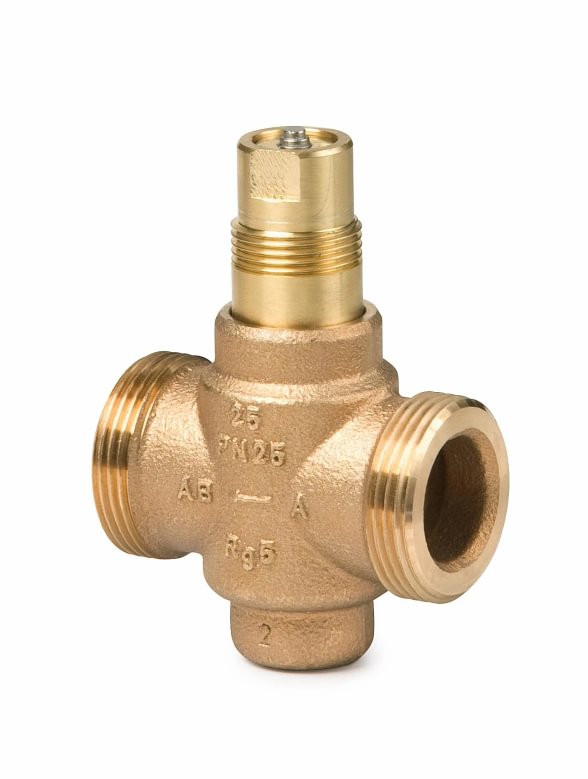

Siemens VVG44.20-6.3 two-way regulation valve
€ 120,89€ 195,94+ PVM
SKU
VVG44.20-6.3
Model
VVG44.20-6.3
Delivery
1 - 2 working days.Brand
siemens
Weight
0.63kg.
Have questions?
TL;DR: Two-way regulation valve DN 20, Kvs 6.3 m³/h — for heating and cooling circuits with Siemens SAS/SAX actuators.
- Tipas: Dvieigis (2-eigis) reguliavimo vožtuvas
- DN: 20
- Kvs: 6,3 m³/h
- PN: 16 bar
Where VVG44.20-6.3 is used
Siemens VVG44.20-6.3 — two-way regulation valve is typically used in B2B HVAC heating, DHW (domestic hot water) or cooling systems. See When-to-choose section below for specific use cases.
Technical specifications
| Parameter | Value |
|---|---|
| Tipas | Dvieigis (2-eigis) reguliavimo vožtuvas |
| DN | 20 |
| Kvs | 6,3 m³/h |
| PN | 16 bar |
| Jungimas | G 1" išorinis sriegis |
| Δp maks. | 4 bar (SAS31), 6 bar (SAX31) |
| T diapazonas | 2 … 150 °C |
| Terpės | Vanduo, glikolio tirpalas iki 50 % |
| Korpusas | Bronza (dezinkifikacijai atspari) |
| Sėdynė | Nerūdijantis plienas |
| Nuotėkio klasė | IV klasė (0,05 % Kvs) |
| Suderinamos pavaros | Siemens SAS31/SAS61 (300–400 N), SAX31 (800 N) |
Capacity — quick calculation
Formula: Q = Kvs × √Δp. Precise sizing depends on flow rate and system parameters — use the manufacturer's calculation tool or contact our free technical consultation.
Designer note: Before final VVG44.20-6.3 selection we recommend verifying against the manufacturer catalogue — some technical values (e.g., max Δp, Kvs, Q ranges) depend on the specific configuration.
When to choose VVG44.20-6.3
- Šildymo/vėsinimo kontūrai su ~40–90 kW galios poreikiu (Δp 0,5 bar)
- Standartinis Siemens BMS integracija (SAS31.03 + Ouman/Siemens valdikliai)
- Kai reikia modernizuoti pasenusius Danfoss VS2 vožtuvus (analogiškas Kvs)
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation for VVG44.20-6.3 selection
Frequently asked questions
Kokia pavara tinka VVG44.20-6.3?
Tipiškai Siemens SAS31.03 (300 N, 30 s) mažoms sistemoms arba SAX31.03 (800 N) didesniems Δp.
Ar tinka DHW (KVR) grandinei?
Taip. VVG44 serija atitinka geriamojo vandens sistemų reikalavimus (bronza + SS sėdynė).
Ar galima naudoti glikolio mišinius?
Taip, iki 50 % etilenglikolio/propilenglikolio su tinkamais inhibitoriais.
Kuo skiriasi VVG44 nuo VVG549?
VVG44 — PN 16, bendriems ŠVOK kontūrams. VVG549 — PN 25, spaudimui atsparesnis (aukštybiniai pastatai, dideli komerciniai punktai).
