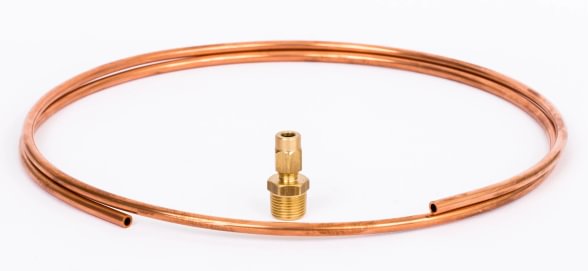

Danfoss impulsinis vamzdelis 6 mm × 1500 mm
- Tube OD: 6 mm
- Length: 1500 mm
- Connection: R 1/2" male thread on both ends
- Material: copper
Applications
Connection of AVP, AVPQ, AVDA and other Danfoss differential-pressure controllers to the measurement point on the consumer branch. The tube transfers the pressure signal to the diaphragm actuator — without it AVP cannot stabilise Δp. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 003H6929 |
| Type | Impulse (capillary) tube |
| Tube OD | 6 mm |
| Length | 1500 mm |
| Connections | R 1/2" male thread (both ends) |
| Material | Copper |
| Compatibility | AVP, AVPQ, AVDA, AVQMT, AB-QM |
Notes for the designer
The impulse tube is often not included in the AVP valve carton — order it separately. Danfoss offers several lengths (1500 mm, 3000 mm etc.) depending on installation distance.
When to choose
- Buying a new AVP/AVPQ differential-pressure controller
- Retrofit projects replacing an old AVP with a new impulse tube
- Stock spares
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free consultation on AVP + impulse tube configuration
Official Danfoss catalog: store.danfoss.com/003H6929
FAQ
Is the impulse tube included with the AVP valve?
No. Depending on the Danfoss revision the packaging may include a short built-in nipple, but the longer capillary tube (1500 mm) is almost always ordered separately.
How to choose the tube length?
Measure from valve to measurement point on the consumer branch + 200 mm reserve. 1500 mm suits most apartment metering schematics. For longer runs Danfoss also offers a 3000 mm version.
Can a third-party tube be used?
Technically yes if it matches 6 mm × R 1/2" copper. Original Danfoss part is recommended for warranty and thread quality.
