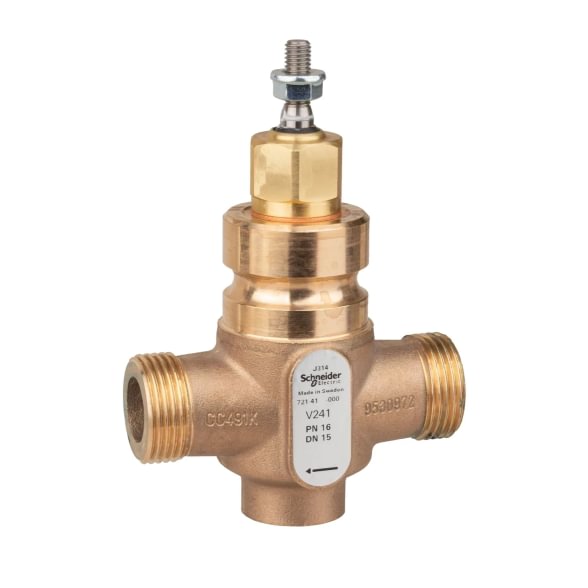

Schneider Electric V241 DN 15 Kvs 2.5
- Type: 2-way seat valve, linear characteristic
- DN + Kvs: DN 15, Kvs = 2.5 m³/h
- PN: 16 bar
- Δp range: up to 400 kPa max. close-off (with M400/M800 actuators)
Applications
Schneider V241 DN 15 Kvs 2.5 fits low-flow control points: single-apartment heating branch (5–20 kW), small DHW branch with limited consumers, AHU water coil at low airflow (< 1500 m³/h). Paired with Schneider Rubisafe / Rubinet controllers and Schneider M400 (heating) or M800 (DHW) actuators. Third-party alternatives — Belimo NV24, Siemens SAS/SAT. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 7214126000 |
| Model | Schneider V241 DN 15 Kvs 2.5 |
| Type | 2-way seat control valve |
| Nominal diameter (DN) | DN 15 |
| Kvs | 2.5 m³/h |
| Nominal pressure (PN) | 16 bar |
| Connection | External thread G ¾" |
| Valve characteristic | Linear |
| Stroke | Actuator-dependent (Schneider M400/M800 = 20 mm) |
| Media | Heating water, glycol solutions up to 50 % |
| Media temperature | +2 → +130 °C |
| Body material | Brass (DZR) |
| Leakage class | IV per EN 60534-4 |
| Compatible actuators | Schneider M400 (heating), M800 (DHW), Belimo H, Siemens SAS/SAT |
Flow and capacity — quick calculation
Formula: Q = Kvs × √Δp (Q — m³/h, Δp — bar).
Example: at Δp = 0.25 bar — Q = 1.25 m³/h → P ≈ 29 kW (ΔT = 20 °C). At Δp = 0.5 bar — Q ≈ 1.77 m³/h → P ≈ 41 kW. At Δp = 1.0 bar — Q = 2.5 m³/h → P ≈ 58 kW.
Designer note
Target valve authority a = Δpvalve / Δpsystem ≥ 0.25 for linear characteristics. If design Δp across the valve is below 20 kPa, control will be coarse. Choose by design conditions, not by pipe DN alone.
When to choose V241 DN 15 Kvs 2.5
- Single-apartment or small-zone radiator heating branch
- Small DHW branch with limited consumer count
- Low-airflow AHU water coil (< 1500 m³/h)
- Retrofit projects with Schneider Rubisafe / Rubinet
- Compatibility: Schneider M400 (heating) / M800 (DHW), controllers Schneider Rubisafe / Rubinet. Alternatives — Belimo NV24, Siemens SAS31.03.
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing for projects and bulk orders
- 30-day payment terms for companies (per contract)
- Free technical consultation on valve and actuator selection
Manufacturer: se.com
FAQ
Does V241 DN 15 Kvs 2.5 replace Danfoss VS 2 DN 15?
Functionally similar: 2-way seat valve, PN 16, brass body, linear trim. Actuator compatibility differs — V241 is tuned for Schneider M400/M800, VS 2 for Danfoss AMV/AME. Match your installed actuator when choosing.
Which actuator fits V241?
Standard Schneider actuators: M400 for heating (no spring-return), M800 for DHW (with spring-return). Third-party: Belimo H series (via adapter yoke), Siemens SAS/SAT.
What is the leakage class?
Class IV per EN 60534-4 — closed-position leakage ≤ 0.01 % Kvs. Standard requirement for DHW / heating.
Can glycol mixtures be used?
Yes, up to 50 % ethylene or propylene glycol. Higher concentrations raise viscosity — recalculate flow with the glycol correction factor.
