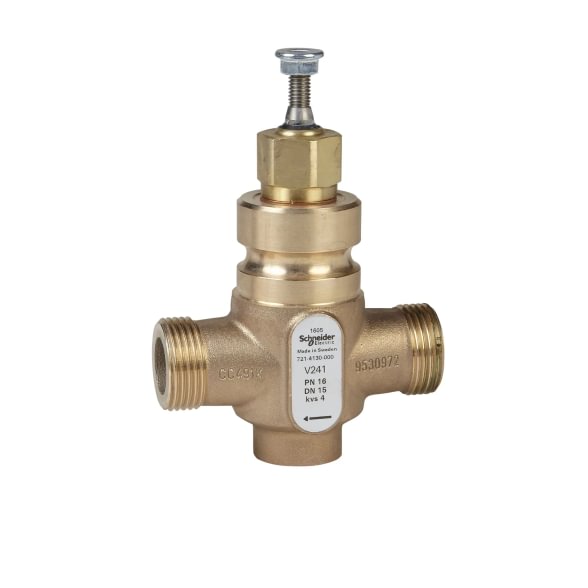

Schneider Electric V241 DN 15 Kvs 4.0
- Type: 2-way seat valve, linear characteristic
- DN + Kvs: DN 15, Kvs = 4.0 m³/h
- PN: 16 bar
- Δp range: up to 400 kPa max. close-off
Applications
Schneider V241 DN 15 Kvs 4.0 fits higher-flow control points on DN 15 pipework: larger single-apartment branches (20–40 kW), small-section heating, medium-load DHW primaries, AHU water coils at medium airflow. Paired with Schneider Rubisafe / Rubinet controllers via M400 or M800 actuator. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 7214130000 |
| Model | Schneider V241 DN 15 Kvs 4.0 |
| Type | 2-way seat control valve |
| Nominal diameter (DN) | DN 15 |
| Kvs | 4.0 m³/h |
| Nominal pressure (PN) | 16 bar |
| Connection | External thread G ¾" |
| Valve characteristic | Linear |
| Media | Heating water, glycol solutions up to 50 % |
| Media temperature | +2 → +130 °C |
| Body material | Brass (DZR) |
| Leakage class | IV per EN 60534-4 |
| Compatible actuators | Schneider M400, M800, Belimo H, Siemens SAS/SAT |
Flow and capacity — quick calculation
Formula: Q = Kvs × √Δp (Q — m³/h, Δp — bar).
Example: at Δp = 0.25 bar — Q = 2.0 m³/h → P ≈ 46 kW (ΔT = 20 °C). At Δp = 0.5 bar — Q ≈ 2.83 m³/h → P ≈ 66 kW. At Δp = 1.0 bar — Q = 4.0 m³/h → P ≈ 93 kW.
Designer note
V241 DN 15 Kvs 4.0 is the largest Kvs available in the DN 15 body. If more capacity is required, step up to V241 DN 20 Kvs 6.3 (7214134000). Choose based on design flow and authority (a ≥ 0.25).
When to choose V241 DN 15 Kvs 4.0
- Larger single-apartment or small-section heating branch (20–40 kW)
- Medium-load DHW primary branch
- AHU water coil at medium airflow (1500–2500 m³/h)
- Retrofit projects with Schneider Rubisafe
- Compatibility: Schneider M400 (heating) / M800 (DHW), controllers Schneider Rubisafe / Rubinet.
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing for projects and bulk orders
- 30-day payment terms for companies (per contract)
- Free technical consultation on valve and actuator selection
Manufacturer: se.com
FAQ
DN 15 Kvs 4.0 or DN 20 Kvs 6.3?
DN 15 Kvs 4.0 when the pipe is already DN 15 or design Q ≤ 2.5 m³/h. DN 20 Kvs 6.3 when the pipe is DN 20 or Q > 3 m³/h. Do not down-size the DN just to preserve authority.
Which actuator?
Schneider M400 (heating) or M800 (DHW). Third-party: Belimo H, Siemens SAS/SAT.
Suitable for a potable-water DHW scheme?
V241 DZR brass body is not certified for direct potable contact. In DHW schemes the valve sits on the heating (primary) side — no potable contact.
Leakage class?
Class IV per EN 60534-4 — closed-position leakage ≤ 0.01 % Kvs.
