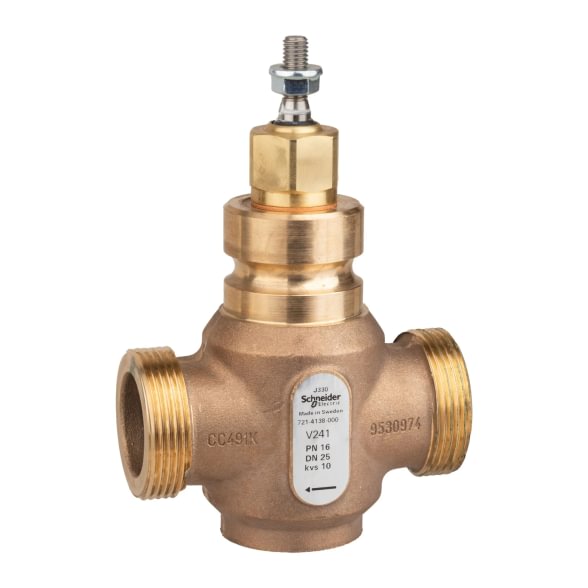

Schneider Electric V241 DN 25 Kvs 10
- Type: 2-way seat valve, linear characteristic
- DN + Kvs: DN 25, Kvs = 10 m³/h
- PN: 16 bar
- Δp range: up to 400 kPa max. close-off
Applications
Schneider V241 DN 25 Kvs 10 fits higher-load points: multi-family substation primary at 150–230 kW, main heating-group valve in commercial buildings, DHW primary for hotels or schools. Paired with Schneider Rubisafe / Rubinet controllers via M400 or M800 actuator. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 7214138000 |
| Model | Schneider V241 DN 25 Kvs 10 |
| Type | 2-way seat control valve |
| Nominal diameter (DN) | DN 25 |
| Kvs | 10 m³/h |
| Nominal pressure (PN) | 16 bar |
| Connection | External thread G 1¼" |
| Valve characteristic | Linear |
| Media | Heating water, glycol solutions up to 50 % |
| Media temperature | +2 → +130 °C |
| Body material | Brass (DZR) |
| Leakage class | IV per EN 60534-4 |
| Compatible actuators | Schneider M400, M800, Belimo H, Siemens SAS/SAT |
Flow and capacity — quick calculation
Formula: Q = Kvs × √Δp.
Example: at Δp = 0.25 bar — Q = 5.0 m³/h → P ≈ 116 kW. At Δp = 0.5 bar — Q ≈ 7.07 m³/h → P ≈ 164 kW. At Δp = 1.0 bar — Q = 10 m³/h → P ≈ 232 kW (ΔT = 20 °C).
Designer note
V241 DN 25 Kvs 10 is the standard pick for medium-to-higher load points. Above 230 kW — use DN 32 Kvs 16 (7214142000) or a flanged DN 40+ valve. For variable network Δp — a PICV alternative is preferable.
When to choose V241 DN 25 Kvs 10
- Medium-to-higher load multi-family substation primary valve (150–230 kW)
- Main heating-group valve in commercial buildings
- Hotel or school DHW primary valve
- Retrofit projects with Schneider Rubisafe / Rubinet
- Compatibility: Schneider M400 / M800; controllers Rubisafe / Rubinet.
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing for projects and bulk orders
- 30-day payment terms for companies (per contract)
- Free technical consultation on valve and actuator selection
Manufacturer: se.com
FAQ
When to pick DN 32 Kvs 16 instead of DN 25 Kvs 10?
When design flow exceeds 8 m³/h and the pressure budget cannot afford a larger Δp across the valve. DN 32 Kvs 16 suits > 230 kW points with a tight permissible Δp.
Suitable as a DH primary valve?
Yes. This PN 16 threaded valve is common not only at substation primaries but also in mixing groups.
Do I need a spacer / adapter between the valve and pipework?
Standard G 1¼" threaded connection. When the pipework terminates in a flange — connect via a thread-to-flange adapter. Contact us for adapters.
Leakage class?
Class IV per EN 60534-4.
