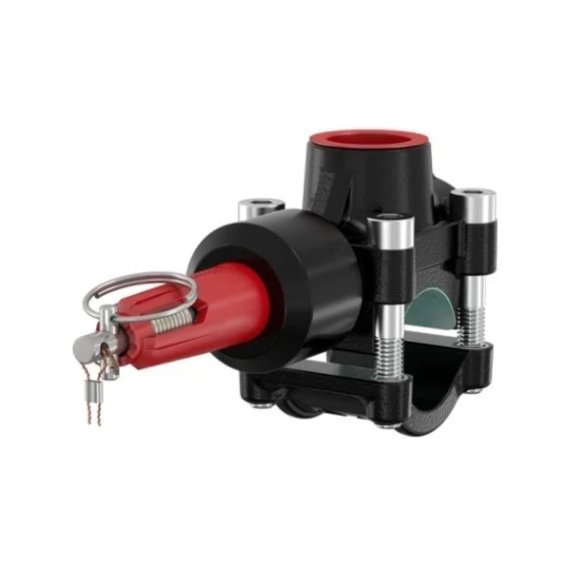

Flamco T-Plus DN40 × Rp 1¼" cast iron tapping saddle, PN 25
- Pipe size: DN40 (1½", ~48 mm OD)
- Branch connection: Rp 1¼" female thread
- Working pressure / temperature: PN 25 / up to 130 °C
- Body material: cast iron with anti-corrosion coating
Where T-Plus DN40 is used
The tapping saddle enables new branches on a live piping network without draining or welding. Ideal case — an existing multi-family substation or commercial network where a new heating/cooling zone, DHW line, additional pump, or measurement point must be added. Installation: clamp body around the pipe → activate the single-shot piercing mechanism → integrated seal isolates the cut → connect the new line to the Rp 1¼" thread. The system stays pressurised throughout.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 90640 |
| Manufacturer | Flamco (Aalberts HFC) |
| Series | T-plus cast iron |
| Nominal pipe diameter | DN40 (1½") |
| Branch connection | Rp 1¼" (female thread) |
| Nominal pressure PN | 25 bar |
| Max operating temperature | 130 °C |
| Body material | Cast iron with anti-corrosion coating |
| Compatible pipes | Steel (St33/34/35/37) per DIN 2441 / NEN 3257 C Heavy / BS 1387 Heavy |
| Wall thickness (steel DN40) | ~3.2-3.7 mm (Heavy grade) |
| Media | Water, glycol solutions up to 50 %, compressed air |
| Piercing mechanism | Single-shot, integrated |
When to choose T-Plus DN40
- Branching from DN40 steel piping without system shutdown
- Renovation or expansion in already-operational substations
- Adding a new pump, measurement point, or heating zone to a live network
- Industrial branches with compressed air or hot water (up to 130 °C)
- Compatibility: DN40 steel pipes per DIN 2441 Heavy grade — verify actual wall condition before installation
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation on pipe compatibility
Official Flamco catalogue: flamcogroup.com/T-plus
Frequently asked questions
Can it really be installed without shutdown?
Yes — that is the T-Plus core purpose. Branching happens on a live pipeline up to PN 25. Integrated seals and the single-shot piercing mechanism seal the body before piercing the pipe wall.
Suitable for copper pipes?
No — this version (cast iron body) targets thick-wall steel pipes only. For copper, Flamco offers a dedicated brass T-Plus variant — contact us for the correct part number.
What is the branch connection?
Rp 1¼" female thread (ISO 7-1). You can attach flange, socket, or compression adapters as required.
Can it be reinstalled after a single piercing?
No — the piercing mechanism is single-shot. The body can only be removed after draining the system; a new installation requires a new T-Plus.
What is the warranty?
Standard Flamco warranty — 1 year (extended terms available under project agreement — contact us).
