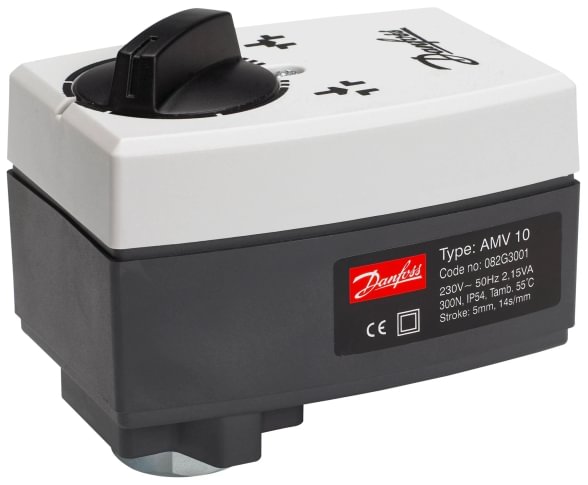

Danfoss AMV 10 electric actuator for 2-way and 3-way valves, 230 V, 300 N, 14 s/mm
- Application: control valve positioning in heating loops
- Thrust: 300 N
- Power / control signal: 230 V AC / 3-point
- Running time / IP: 14 s/mm (5 mm stroke = ~70 s) / IP54
Where AMV 10 is used
AMV 10 is typically chosen for small-to-medium heating loop control — district heating substation user branches, retrofitted zone control points, and technical rooms of family houses. It pairs with Danfoss VRB / VRG series valves (DN 15–32) where 300 N thrust and 5 mm stroke are sufficient. A precise 3-point signal from the controller (Danfoss ECL, Ouman etc.) allows the actuator to maintain the setpoint supply temperature per the outdoor compensation curve.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 082G3001 |
| Series | Danfoss AMV |
| Model | AMV 10 |
| Thrust | 300 N |
| Running time | 14 s/mm (~70 s full stroke) |
| Stroke | 5 mm |
| Power supply | 230 V AC, 50/60 Hz |
| Power consumption | 2 W |
| Control signal | 3-point (open / close / stop) |
| Fail-safe (spring return) | No |
| Manual operation | Yes |
| Position feedback | No (external potentiometer required) |
| IP class | IP54 |
| Ambient T | 0 … 55 °C |
| Storage T | −40 … 70 °C |
| Weight | ~0.57 kg |
When to choose AMV 10
- Heating loop temperature control in a district heating user branch (~30–90 kW)
- 3-way mixing valve control for underfloor heating or radiator loops
- Zone heating control in small commercial or public buildings
- When standard 14 s/mm running time is adequate (slow outdoor T changes)
- Compatibility: Danfoss VRB 2/VRB 3 (DN 15–32) and VRG 2/VRG 3 (DN 15–32) control valves; works with Danfoss ECL, Ouman EH/S203 and any controller providing 3-point output
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation for actuator-valve pairing
Official Danfoss catalogue: store.danfoss.com/AMV 10 (082G3001)
Frequently asked questions
What is the difference between 3-point and 0–10 V control?
3-point — the actuator receives discrete "open / close / stop" pulses; position is set by pulse duration. 0–10 V (modulating) — the actuator receives an analogue signal and positions itself proportionally. AMV 10 supports 3-point only. For modulating control, choose a Danfoss AME series equivalent.
Does AMV 10 have a fail-safe (spring return) function?
No. On power loss the actuator stays in its current position. If the system requires automatic closing on power loss — choose AMV 13 (with spring) or add a UPS.
What are the allowed mounting positions?
AMV actuators may be mounted vertically above the valve or horizontally, but not head-down (risk of condensate entering the mechanism). Leave at least 100 mm free space above the cover for service access.
Can the control cable be extended?
Yes. The 3-point signal line can be extended by several tens of metres using 3×1.5 mm² (or 3×2.5 mm² for longer runs) cable. Power and signal wires should be routed through separate cores or in an EMC-shielded cable.
Will it fit as a direct replacement for a failed AMV 10?
Yes — 082G3001 is a like-for-like replacement for same-series actuators. Mounting interface and calibration are compatible with all VRB/VRG valve heads.
