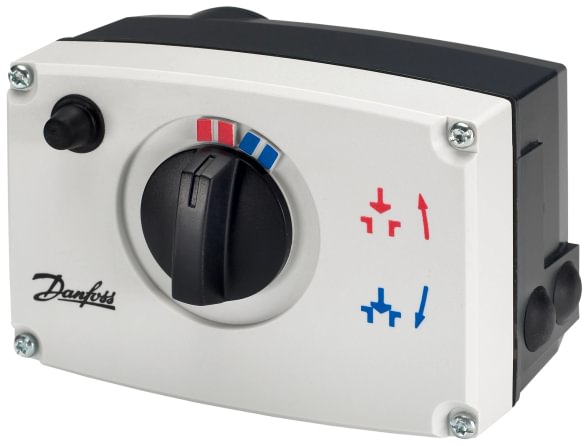

Danfoss AMV 30 fast electric actuator for 2-way and 3-way valves, 230 V, 450 N, 3 s/mm
- Application: fast positioning of DN 20–50 control valves in DHW and heating loops
- Thrust: 450 N
- Power / control signal: 230 V AC / 3-point
- Running time / IP: 3 s/mm (10 mm stroke = ~30 s) / IP54
Where AMV 30 is used
AMV 30 targets fast-changing processes where a standard 15 s/mm actuator would react too slowly, causing temperature swings. The classic case is domestic hot water (DHW) via a plate heat exchanger: when a tap opens, secondary flow changes abruptly, and the primary control valve must respond within seconds to prevent scalding or cold-water complaints. AMV 30 (3 s/mm) paired with a Danfoss ECL 210/310 controller delivers that response.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 082G3011 |
| Series | Danfoss AMV |
| Model | AMV 30 |
| Thrust | 450 N |
| Running time | 3 s/mm (~30 s full stroke) |
| Stroke | 10 mm |
| Power supply | 230 V AC, 50/60 Hz |
| Power consumption | 7 W |
| Control signal | 3-point (open / close / stop) |
| Fail-safe (spring return) | No |
| Manual operation | Yes |
| Position feedback | No (external potentiometer required) |
| IP class | IP54 |
| Ambient T | 0 … 55 °C |
| Weight | ~1.58 kg |
When to choose AMV 30
- DHW temperature control via a plate heat exchanger (fast flow changes)
- DN 20–50 control valves where fast response is required
- Heating loops needing quick reaction (e.g., underfloor with variable flow)
- When the system will not tolerate oscillation from slow actuator response
- Compatibility: Danfoss VRB 2/VRB 3 (DN 15–50), VRG 2/VRG 3 (DN 15–40) and VS 2 series valves; works with Danfoss ECL 210/310, Ouman EH/S203 and any 3-point-output controller
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation for actuator-valve pairing
Official Danfoss catalogue: store.danfoss.com/AMV 30 (082G3011)
Frequently asked questions
Why AMV 30 instead of AMV 20?
The only technical difference is response speed: AMV 30 covers the full 10 mm stroke in ~30 s, AMV 20 in ~150 s. Heating loops with slowly changing outdoor T are fine with AMV 20. DHW and processes with abrupt flow changes need the fast AMV 30.
Does AMV 30 have a fail-safe function?
No. The spring-return variant is AMV 33 (082G3013), also 3 s/mm, 450 N.
Does AMV 30 support 0–10 V?
No. The modulating (0–10 V) analogue is AME 30. AMV 30 supports 3-point only.
How to mount a higher-power actuator?
Vertically above the valve or horizontally. Not head-down. Leave at least 100 mm above the actuator. Check stem alignment via manual override before first energising.
What cable is required?
Standard 3-core cable 3×1.5 mm² (L1 "open" phase, L2 "close" phase, N common). For longer runs (>50 m) — 3×2.5 mm² to compensate voltage drop, especially if the cable shares the run with high-load consumers.
