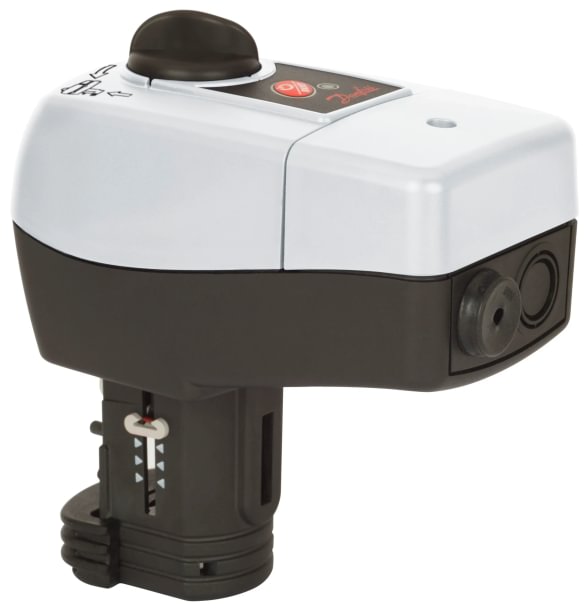

Danfoss AMV 435 elektrinė pavara
- Control signal: 0(2)-10 V or 3-point (jumper)
- Supply: 24 V AC
- Force: 400 N
- Stroke: up to 15 mm
Applications
Electric actuation of Danfoss VF, VFS, VB2, VRB, VRG control valves in district-heating substations. Compatible with ECL Comfort 210/310 in both 0-10 V and 3-point modes. Used in standard substation schematics for water-flow modulation. Delivery across the EU.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 082H0163 |
| Type | Modulating electric actuator |
| Supply | 24 V AC ±10 %, 50/60 Hz |
| Power consumption | 3 VA |
| Force | 400 N |
| Max stroke | 15 mm |
| Speed | ~ 15 s/mm |
| Control signal | 0(2)-10 V DC / 3-pt (Y1-Y2) |
| Valve compatibility | Danfoss VF, VFS, VB2, VRB, VRG |
| Protection class | IP 54 |
| Ambient temperature | 0 → +55 °C |
Notes for the designer
The actuator clips onto the valve — no tools required. Before commissioning, set the Y1/Y2 DIP switches according to the ECL application schematic (usually "normally open" in operation).
When to choose AMV 435
- Modulating (analog) flow control required
- Standard substation schematics with an ECL Comfort controller
- Valve stroke up to 15 mm — VF, VFS DN15-40, VB2, VRB, VRG
B2B delivery and logistics
- Delivery across the EU (from warehouse in Vilnius, LT)
- Competitive B2B pricing
- 30-day payment terms for companies
- Free technical consultation on valve/actuator selection
Official Danfoss catalog: store.danfoss.com/082H0163
FAQ
Does it support 3-point control?
Yes. Selectable via a DIP switch inside the actuator housing: 0(2)-10 V or 3-pt.
AMV 435 vs AMV 335?
AMV 335 has lower force (~300 N) and is a cheaper alternative. AMV 435 offers higher force and tighter shut-off at elevated Δp.
Suitable for DN50 and larger valves?
Only for VF/VFS DN15-40 with 15 mm stroke. Larger DN50+ valves need AMV 55/85 or a stronger actuator.
