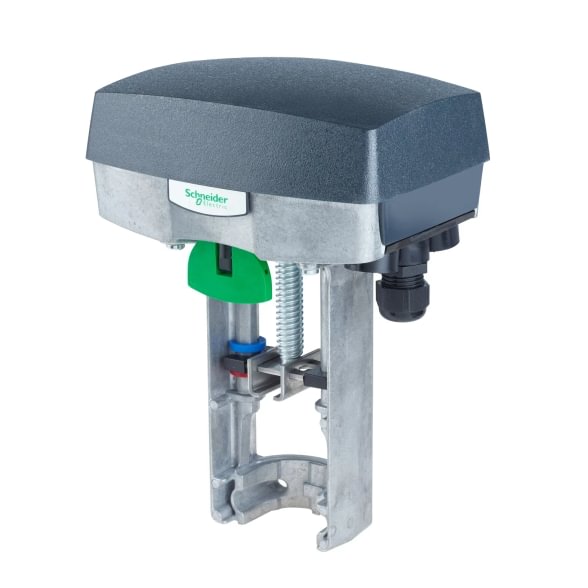

Schneider Electric SpaceLogic M400 electric linear actuator, 400 N, 0-10 V, 24 V AC/DC, up to 32 mm stroke
- Application: modulating linear valve actuation in HVAC and district heating substations
- Force: 400 N; auto-calibrated stroke 9-32 mm
- Power / control: 24 V AC/DC, 0-10 V DC (switchable 2-10 / 0-5 / 5-10 V) or 3-point
- Runtime / IP: 60 s full stroke, IP54
Where SpaceLogic M400 is used
SpaceLogic (Forta) M400 is selected for substation control valves in commercial and multi-family BMS installations using Schneider Electric V241 (2-way), V311 (3-way) or V321 globe valves. The 0-10 V DC control signal is compatible with any standard BMS controller (SpaceLogic AS-B/AS-P, Danfoss, Siemens Climatix, Trend IQ). The brushless DC motor delivers a long service life and low noise — useful when the actuator is mounted near occupied spaces.
Auto-calibration (auto-cal) — the actuator self-detects its stroke limits (in the 9-32 mm range) at first power-up, so one SKU covers a wide span of Schneider globe valve sizes. The 2-10 V DC position feedback signal lets the BMS see the actual valve position and detect mechanical faults.
Technical specifications
| Parameter | Value |
|---|---|
| Code | 8800230030 |
| Series | Schneider Electric SpaceLogic Forta M400 |
| Type | Modulating linear actuator (brushless DC motor) |
| Force | 400 N |
| Stroke | 9-32 mm (auto-calibration) |
| Runtime (full stroke) | 60 s |
| Power supply | 24 V AC (±25 %) / 24 V DC (±10 %), 50/60 Hz |
| Transformer rating | 30 VA |
| Power consumption | 7 VA |
| Control signal | 0-10 V DC (switchable 2-10 / 0-5 / 5-10 V) or 3-point |
| Feedback signal | 2-10 V DC position |
| Duty cycle | 20 % |
| Spring return (fail-safe) | No (valve stays at last position on power loss) |
| Manual override | Yes (auto-disconnects PCBA power when active) |
| Auxiliary end-switch relays | Optional (2× SPDT) |
| Ingress protection | IP54 |
| Housing material | Aluminium with ABS/PC cover |
| Ambient temperature | −10…+50 °C |
| Compatibility | Schneider V241 (2-way), V311, V321 (3-way) globe valve series; legacy VB-7xxx via AV-821 adaptor |
When to choose SpaceLogic M400
- Commercial / multi-family substations with Schneider Electric BMS (SpaceLogic AS-B/AS-P, Continuum)
- HVAC heating, domestic hot water (DHW) and cooling water flow modulation
- Where longer stroke (up to 32 mm) with mid-range 400 N force is required for medium-size globe valves
- Retrofit replacement of older Satchwell / TAC M400A actuators (with AV-821 adaptor)
- Compatibility: Schneider Electric V241 (2-way globe), V311, V321 (3-way globe) valves. Legacy VB-7xxx series — only with the AV-821 adaptor.
