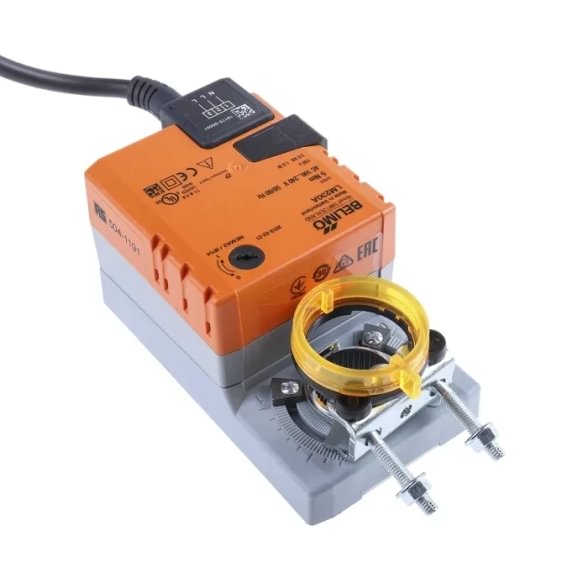

Belimo LM230A rotary damper actuator, 5 Nm, 230 V, 150 s, IP54
- Application: small air damper control in HVAC systems
- Torque: 5 Nm
- Power + control: 230 V AC, on/off or 3-point
- Running time + IP: 150 s / 95°, IP54
Where LM230A is used
LM230A is Belimo's small-format standard-class actuator for small air dampers: zonal shut-off, room supply control, buffer smoke exhaust dampers, constant air volume (CAV) dampers. Chosen when on/off or 3-point control is sufficient (no proportional position needed) and 230 V is available.
Compared to the SM230A (20 Nm), it targets ~1 m² dampers (vs ~4 m²). The universal shaft adapter handles 10-20 mm round or square shafts. It includes a manual override button — useful during commissioning or diagnostics.
Technical specifications
| Parameter | Value |
|---|---|
| Code | LM230A |
| Manufacturer / series | Belimo, L series (small format, non-spring-return) |
| Torque | 5 Nm |
| Nominal voltage | AC 230 V, 50/60 Hz |
| Voltage range | AC 198 ... 264 V |
| Control signal | On/off or 3-point (open/close, open/close/stop) |
| Running time | 150 s / 95° |
| Rotation angle | Max. 95° (adjustable mechanical stops) |
| Shaft clamp | Universal 8 ... 20 mm (round or square) |
| Damper area (recommended) | Up to ~1 m² |
| Manual override | Yes (push-button disengages motor) |
| Position indicator | Mechanical, visible on housing |
| Rotation direction | Reversible (selector clockwise / counter-clockwise) |
| Protection class | IP54 (any mounting position) |
| Ambient temperature | -30 ... +50 °C |
| Connection | PVC cable 1 m, 3 × 0.75 mm² |
| Maintenance | Not required (lubrication-free) |
When to choose LM230A
- Zonal air distribution dampers up to ~1 m² with 230 V nearby
- Buffer smoke exhaust and aeration dampers in apartments / small commercial
- CAV (constant air volume) dampers with 3-point BMS control
- Where on/off or 3-point is sufficient and no fail-safe is needed
- Compatibility: universal 8-20 mm clamp fits most damper brands (Trox, Systemair, Halton, Fläkt); direct shaft mounting with a single adapter
B2B delivery and logistics via Amegata.lt
- 24-hour delivery across Lithuania (from our warehouse in Vilnius)
- Competitive B2B pricing — often below market average
- 30-day payment terms for companies (per contract)
- Free technical consultation on actuator sizing
Official Belimo catalogue: belimo.com/damper-actuators
Frequently asked questions
What is the difference between LM230A and SM230A?
Torque and damper area: LM230A = 5 Nm, ~1 m²; SM230A = 20 Nm, ~4 m². Other properties (150 s runtime, IP54, on/off or 3-point, 230 V) are the same. Pick LM230A for small dampers, SM230A for medium.
What is the manual override button?
A push-button on the housing mechanically disengages the motor from the shaft — you can turn the damper by hand to any position (e.g. during commissioning or fault diagnosis). Release the button and the motor re-engages, resuming BMS commands.
Any mounting orientation allowed?
Yes. IP54 applies in any mounting position (shaft up, down, sideways). The only limit — no direct rain and no continuous moisture (not suited for outdoor use without an enclosure).
Does it require periodic maintenance?
No. Belimo actuators are lubrication-free and sealed. In practice, service is only needed if mechanical noise appears or the actuator no longer overcomes damper resistance — then the whole unit is replaced.
Can LM230A accept a 0-10 V signal?
No. LM230A supports only on/off or 3-point control. For proportional 0-10 V positioning use LM24A-SR (24 V) — similar mechanical footprint with proportional control.
